Coleman Classic Re-Charge 400 Lumen LED Lantern
|
I just purchased this Coleman Classic Re-Charge 400 Lumen LED Lantern
(Model / SKU 2155750). While the unit offers a three-year warranty, I'm
curious if the battery can be replaced. Was the unit "permanently"
welded together such that removing the battery would involve breaking a
sealed surface and damaging the unit? Fortunately, the unit is wonderfully accessible / serviceable. The clear globe twists off of the black top/base. Four Phillips screws allow the lamp assembly to separate from the black top/base exposing the battery and circuitry. It uses a popular 18650 battery. So, well after the first battery hits end-of-life, the lantern should hopefully be found in use at many campsites. |

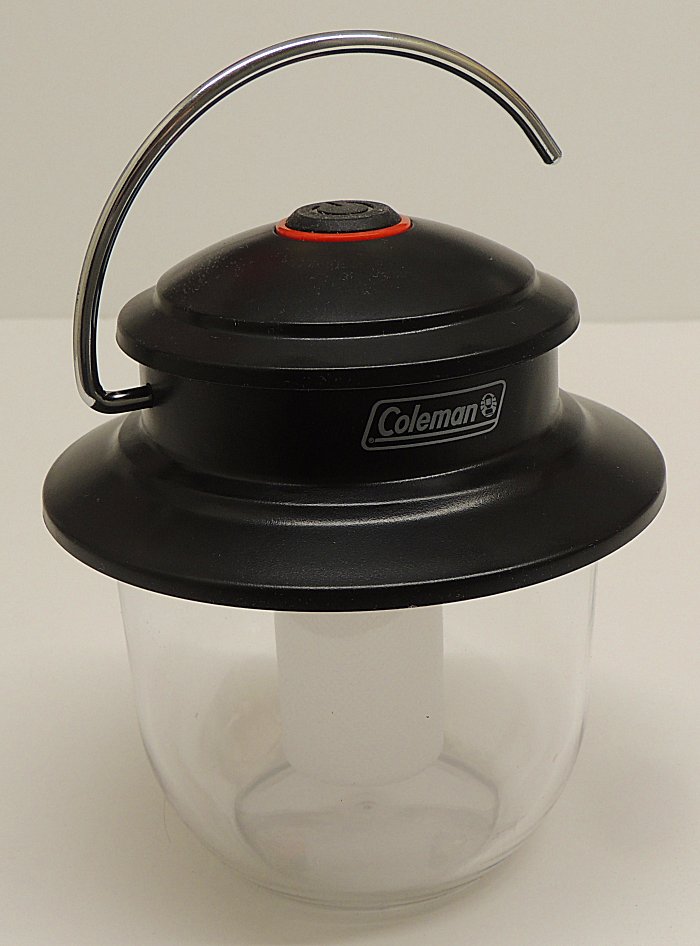

| Front face with the Coleman logo |

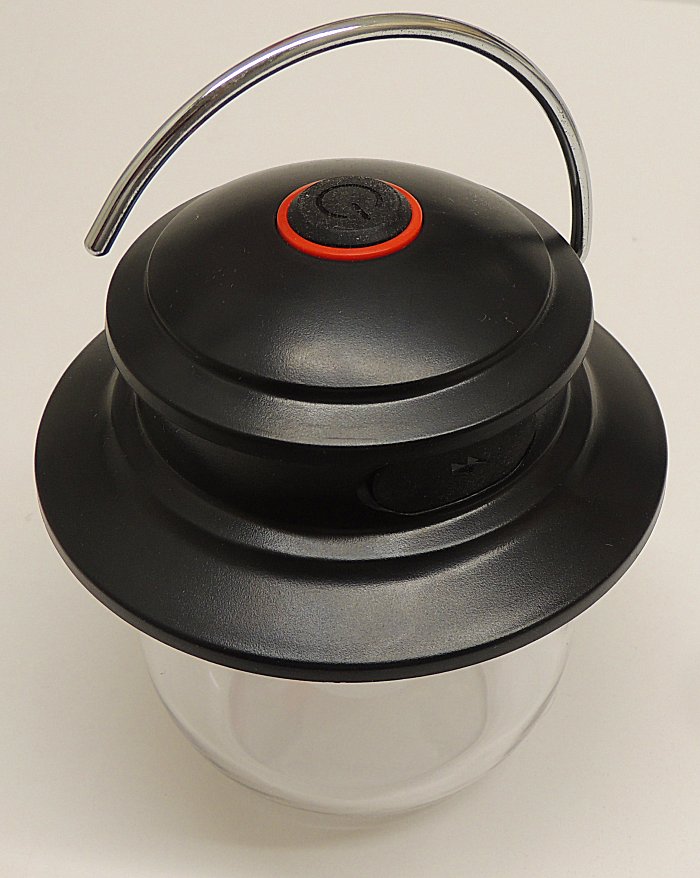

| Top has the multi-function button (on/off, low > med > high > blink) Back face has the charging port behind a rubber dust cover. |

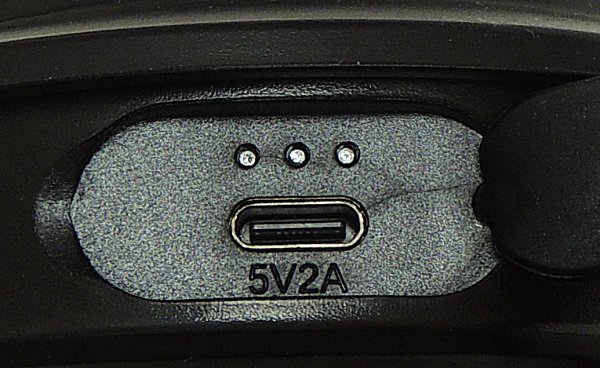

| Battery charge level & Charging status
LED's USB-C Charging port |

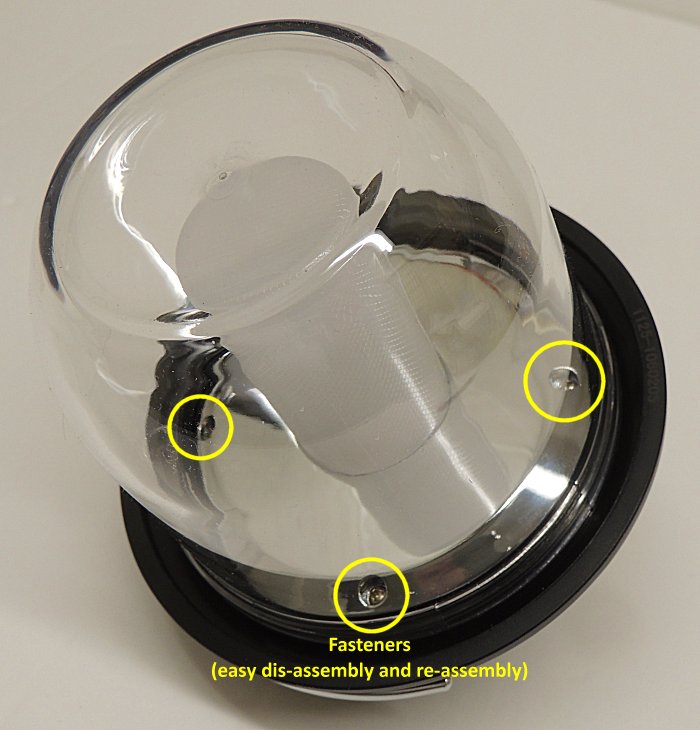

| Screws! |

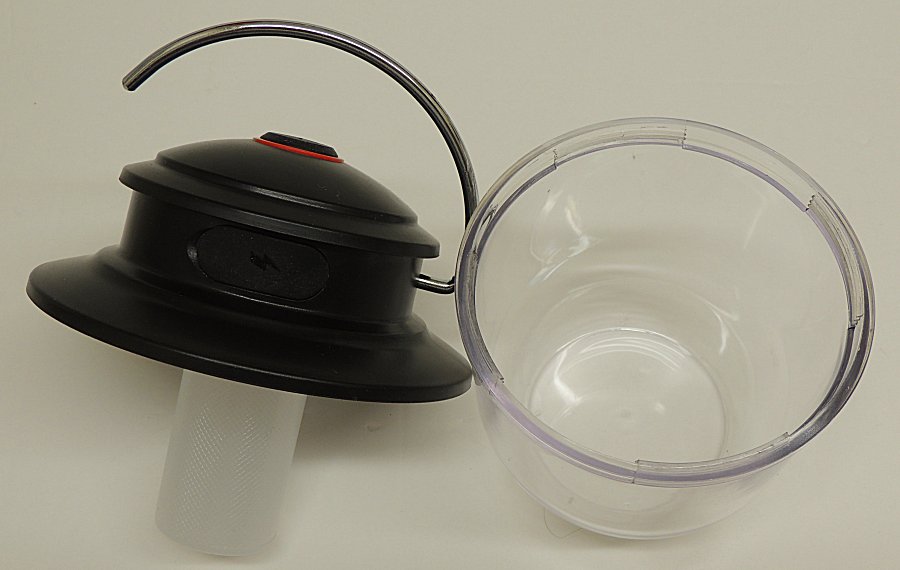

| The clear plastic globe (seems sufficiently
sturdy) is conventional (right-hand) screw threaded onto the black top. It's easily removable for cleaning its inside as well as access to the four screws... |

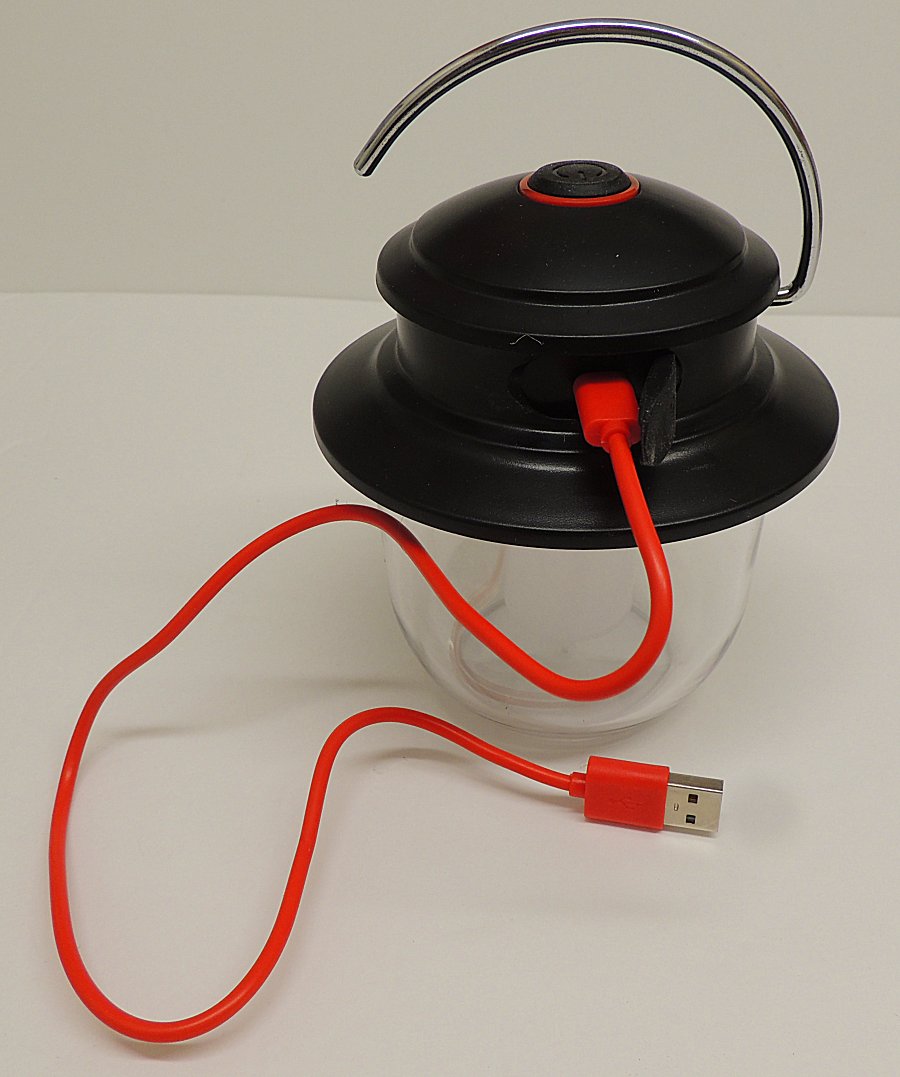

| Charging cable / USB-C Charging port |

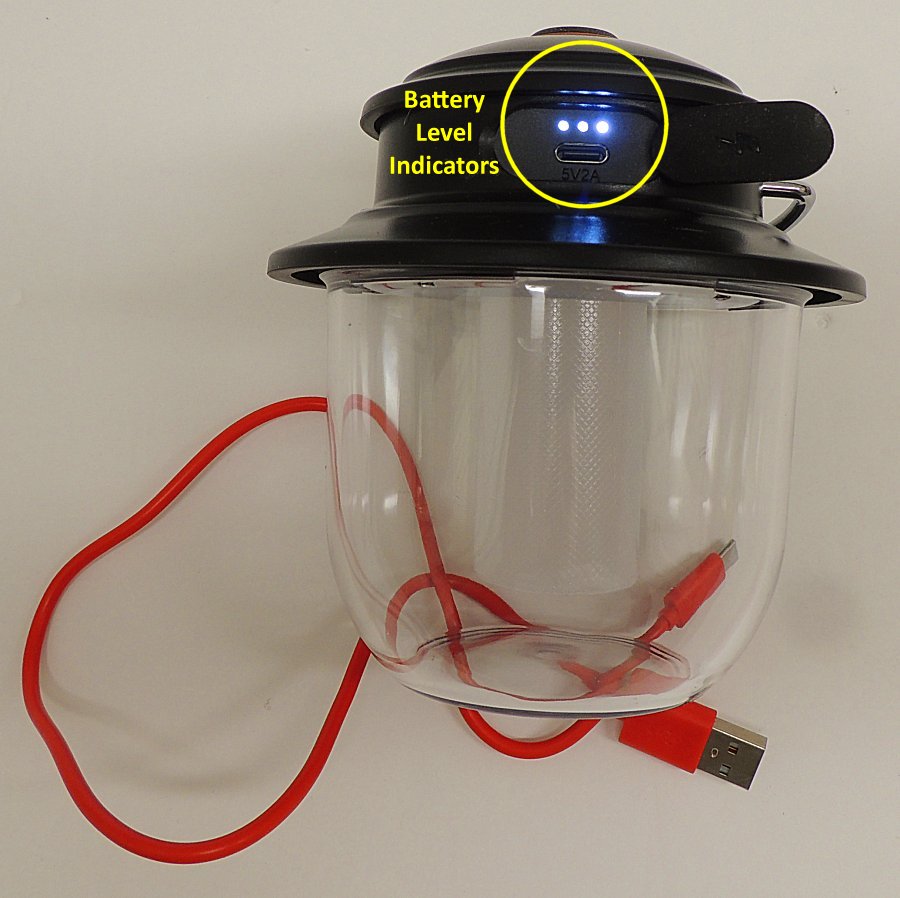

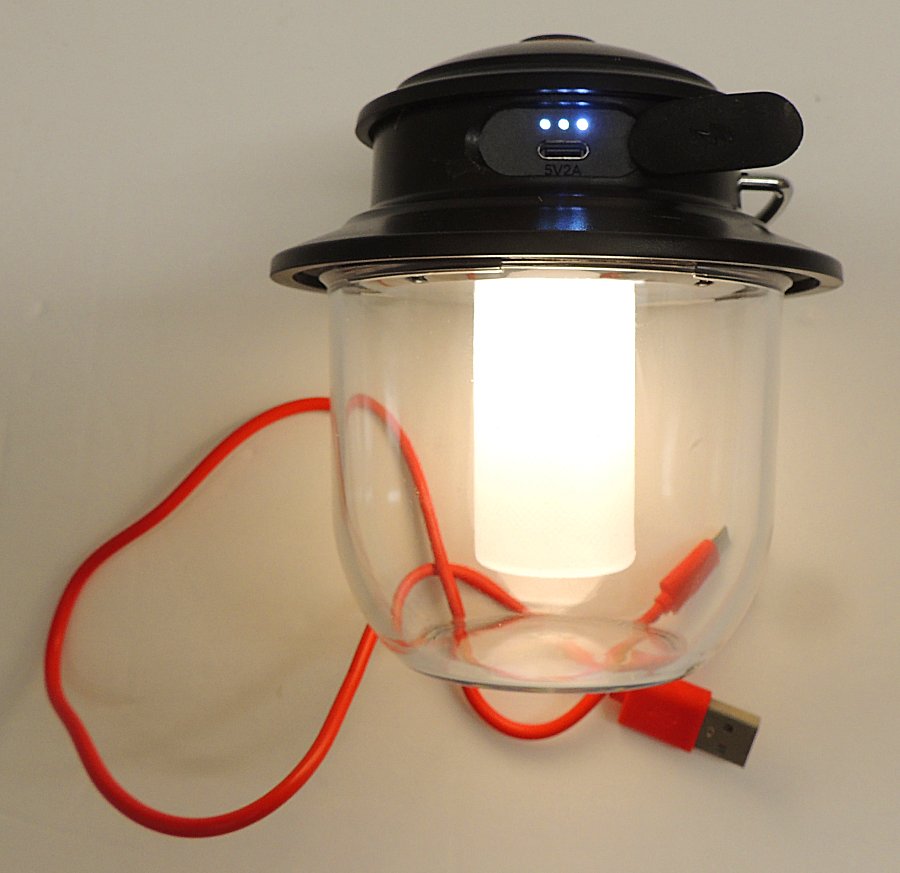

| Battery charge level LED's stay on when the
lamp is on. |
| Battery charge level LED's stay illuminated
for about 30 seconds after the lamp is turned off. |

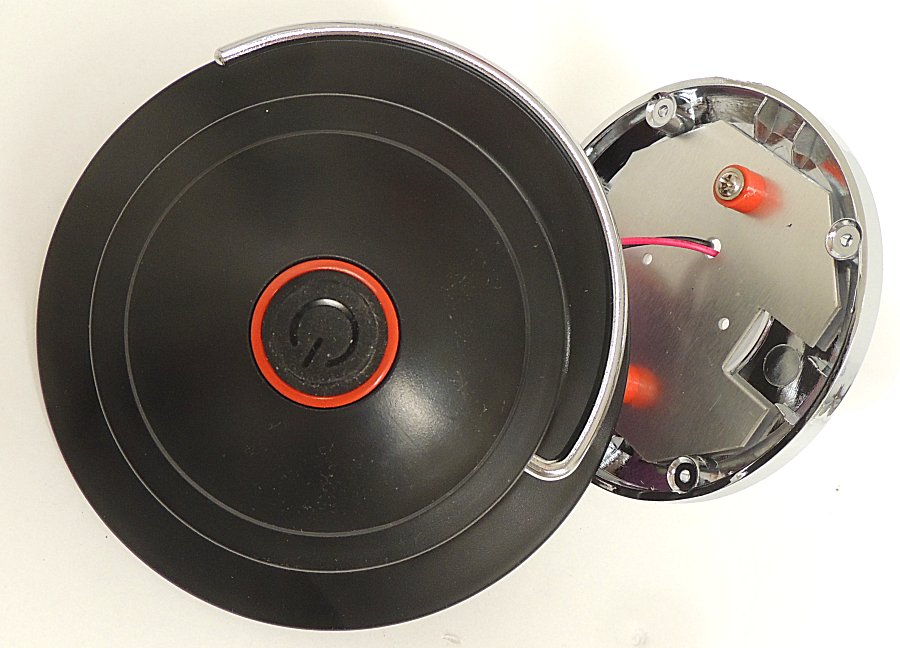

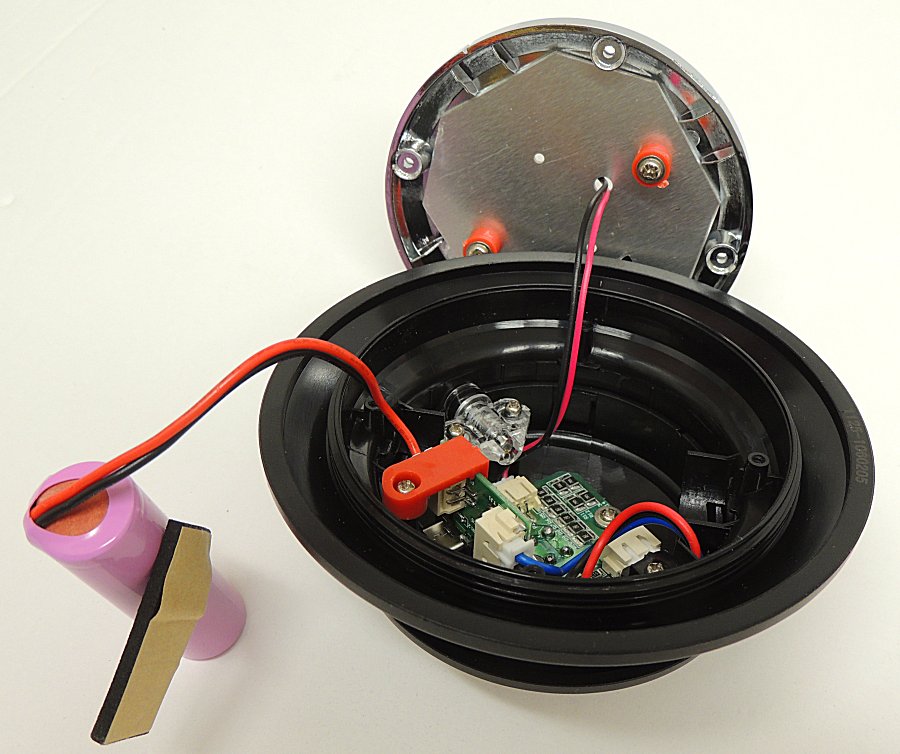

| Remove the four Phillips head screws and
wiggle-pull the chrome lamp assembly from the black base. |

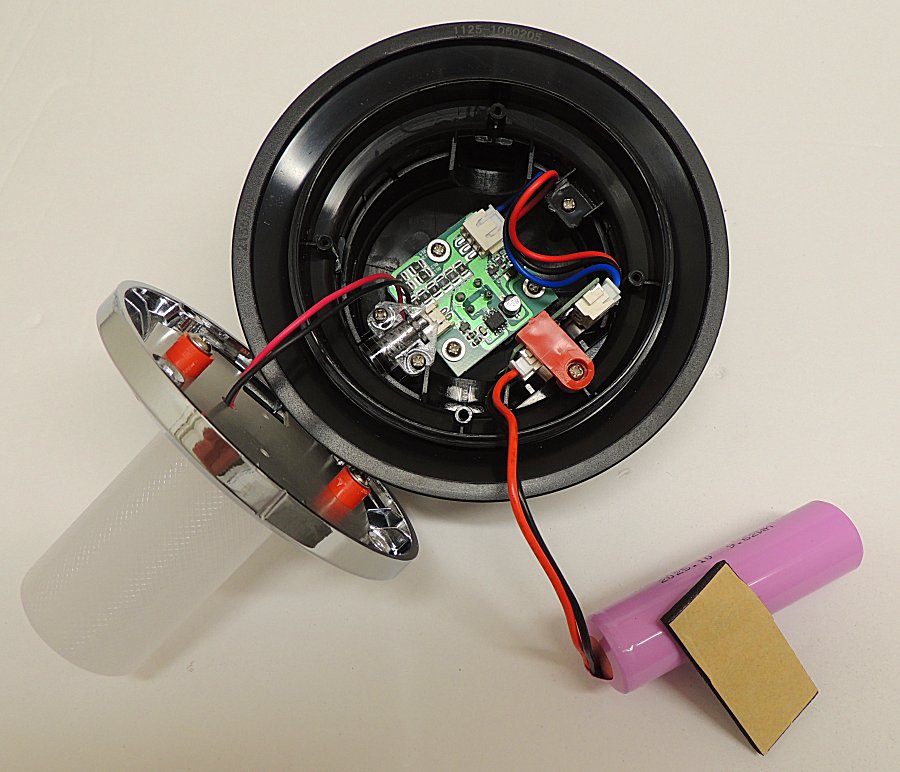

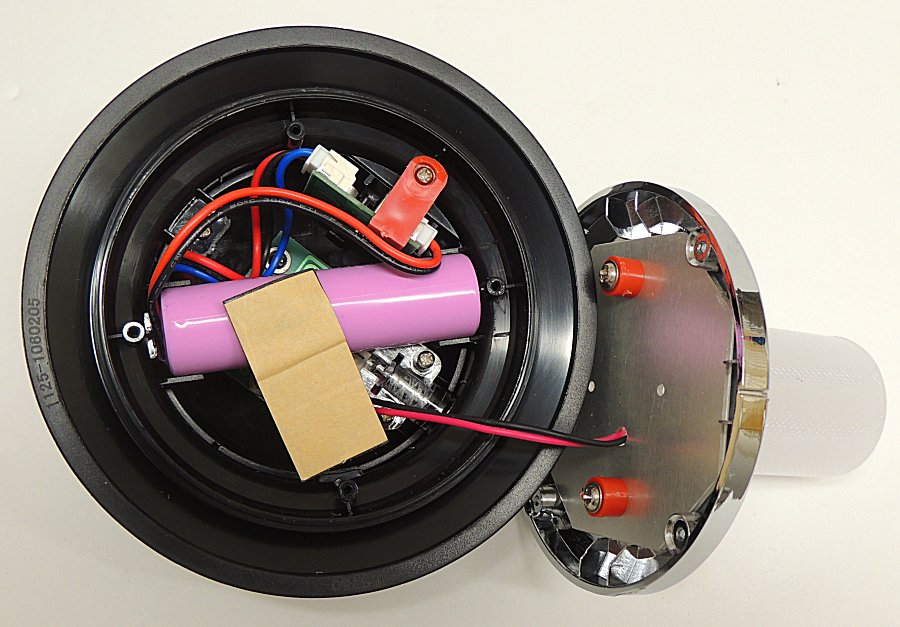

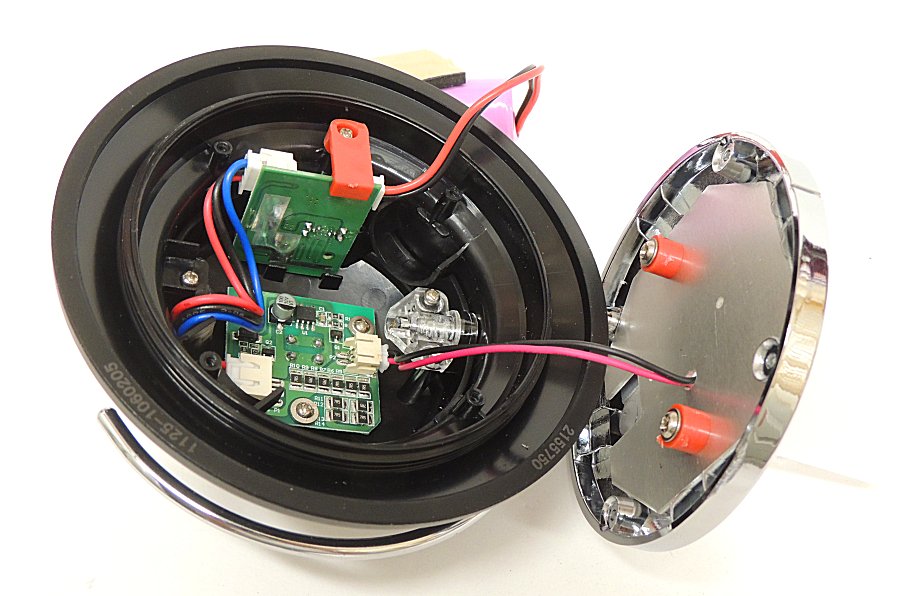

| The battery sits in U-shaped holders - pull up
and out. All components are plug/receptacle connected (vs. solder connected). The battery can be easily unplugged and replaced (via purchase or at a battery store - re-using the leads with connector). Having an easily serviceable battery will add years of life capability to this lantern. Thanks Coleman for such a serviceable unit! |

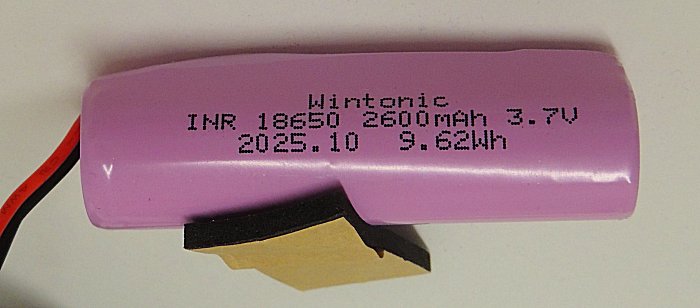

| Wintonic INR 18650 2600mAh 3.7V 2025.10 9.62Wh |

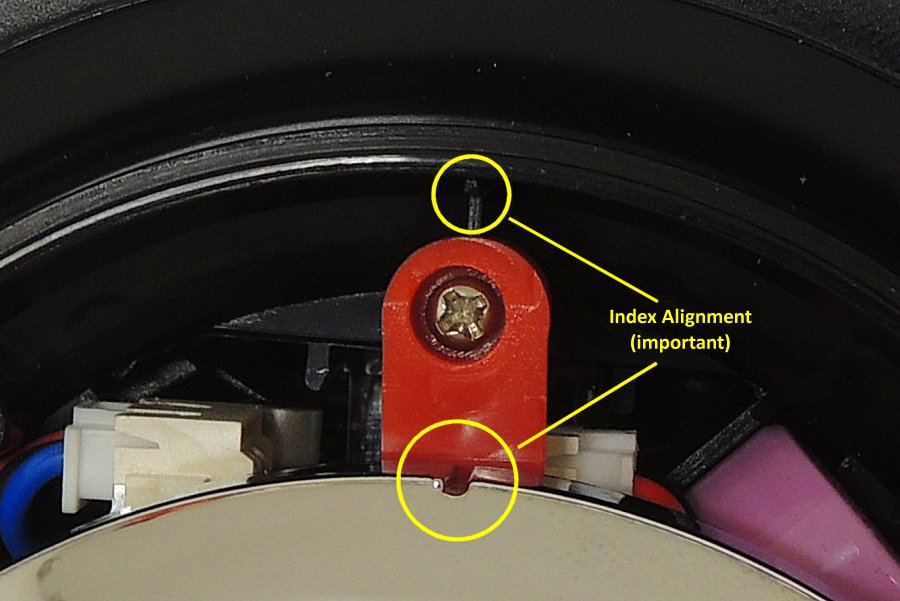

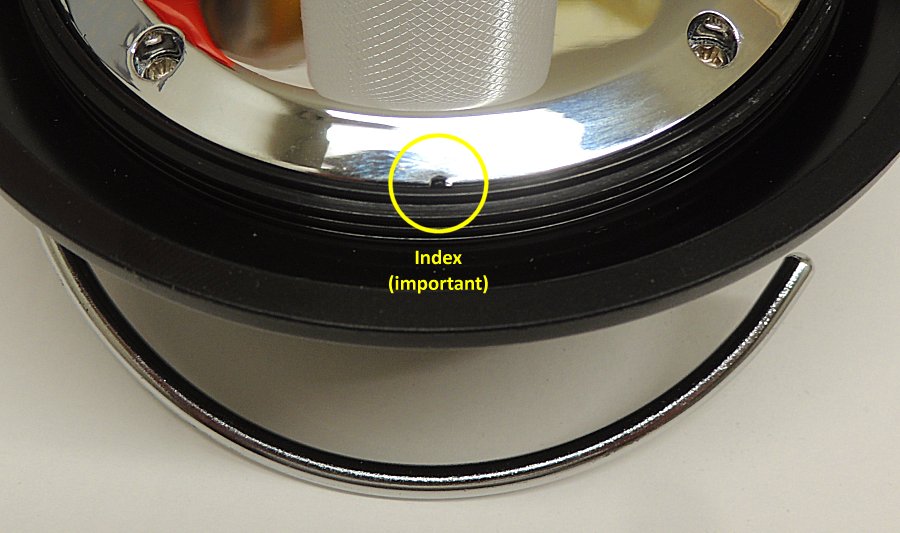

| When re-assembling the chrome lamp assembly
onto the black base, pay attention to align the two items - if not, the
lamp assembly will not fit flush. |
| Box photos |

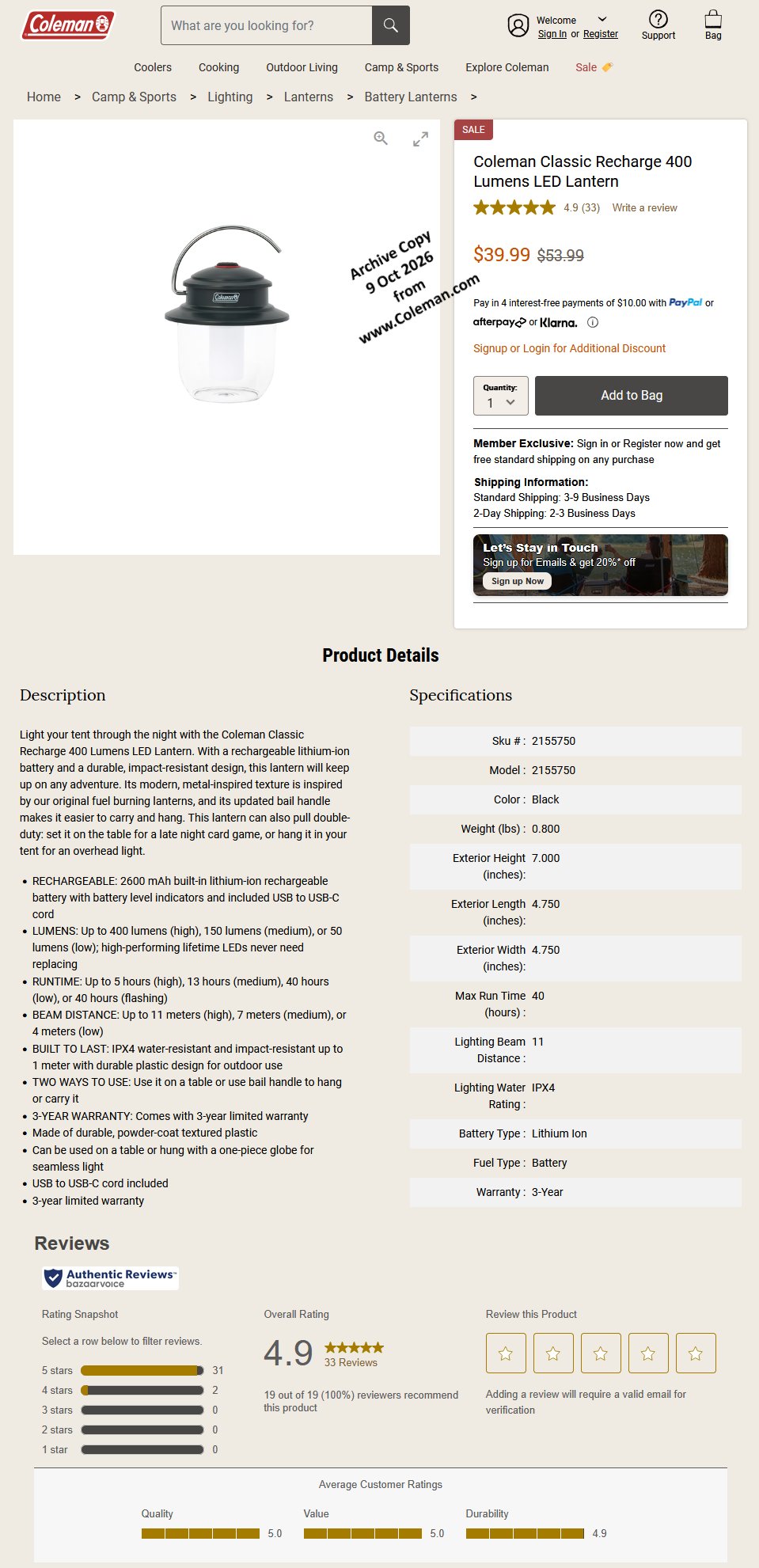

| An archive of the Coleman web page for this
product (URL current as of this post) www.Coleman.com/camp-sports/lighting/lanterns/battery-lanterns/coleman-classic-recharge-400-lumens-led-lantern/SAP_2155750.html |
